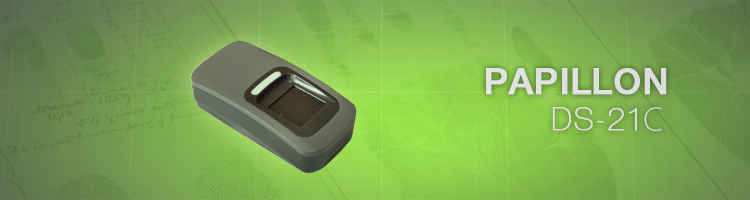

PAPILLON DS-21C Livescan Fingerprint Device
- Created on Wednesday, 16 April 2014 09:25
- manufactured as a separate optical unit driven by a backbone computer
- designed to capture touch fingerprints
The DS-21C is currently being prepared for certification procedure in FBI, USA.
The DS-21C uses the optical technology that enables producing high quality fingerprint and palmprint images even of moist fingers and palms.
| Key Features and Specifications: | |
|---|---|
| Resolution of resulting images | 500 ppi (500 pixels per inch) |
| Dynamic Range | 8 bpp (8 bit per pixel) |
| Signal–To–Noise Ratio | Minimum: 40 db |
| Sensing Area | 1 platen for taking a flat finger impression |
| Scan Area | 20 x 20 mm |
| Image Size (Maximum): – Flat Fingerprint |
20 x 20 mm |
| Time for scanning a fingerprint | < 2 seconds |
| FBI's Requirements Compliance | Compliant to the FBI's "IAFIS Image Quality Specification": CJIS-TD-0110; CJIS-RS-0010 (v7) app. F, uncertifiable in scanning window size Compliant to the FBI’s “Image Quality Specification for Single Finger Capture Devices”,CJIS-Division, v. 071006, 10 July 2006 |
| Compensation for smears at rolling | Yes |
| Elastic Coating (Membrane) | Yes |
| Moisture Discrimination | Yes |
| Interface | USB 2.0 (480 Мbit/sec) |
| Power Supply | 5 V (USB) |
| Power Input | Maximum: 1 Watt |
| Scanner Size (W x D x H) | 53 x 110 x 31 mm |
| Scanner Weight | 0.17 kg |
| Self-contained Keypad | No |
| LCD Monitor: | No |
| Operating Systems | Windows, Linux |
| Application Software | PAPILLON LIVE SCANNER, PAPILLON FILTER, PAPILLON SDK |
